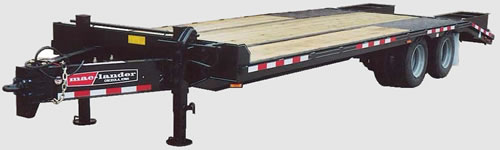

32,000# GVWR, 25’ tag type with 16K straight air brake axles, oil bath bearings, 2 speed double drop leg landing gear, 17.5” tires, fabricated pierced flanged beam frame with reinforced cross members and ramps.
Models Available: 25TTHWC
|
Tandem Dual Heavy Series Flatbed Trailer Specifications |
|
|
Deck Length |
25’ |
|
Overall Width |
102” |
|
Axles |
Oil Bath 2 – 16,000 # |
|
Brakes On All Axles |
Air |
|
Tire Size |
215/75R17.5 Radial LRH |
|
Pattern |
10 On 8 3/4 ” |
|
Adjustable Coupler |
Standard |
|
Hitch Size |
Lunette Eye |
|
Hitch Height |
20” – 29” |
|
Bed Height |
33 1/2” |
|
GVWR |
32,000# |
|
Payload Capacity (Average) |
24,600# |
|
Floor |
2” Treated Wood |
|
Front Jack |
2-Speed 50,000# |
|
DOT Lighting |
Standard |
|
Break-Away Kit with Battery |
Spring Brake Chamber |
|
Cross Members |
Reinforced 4” Channel on 16” Center |
|
Frame Rails |
Fabricated Pierced Flanged Beam |
|
5’ Ramps |
Heavy Duty Spring-Assist Wedge |
|
Stake Pockets |
Standard |
|
Flip-Up Ramps |
Heavy Duty Spring-Assist Wedge |
|
Full Primer & Paint |
Standard |
|
Three-Year Warranty |
Standard |
|
Sealed Beam Tail Lights |
Standard |
|
D-Rings |
6 Rings |
* Specifications subject to change.
Trailer Specifications Sheet – View Specificaitons For All Trailers (PDF document)
Model Numbering Explanation.
